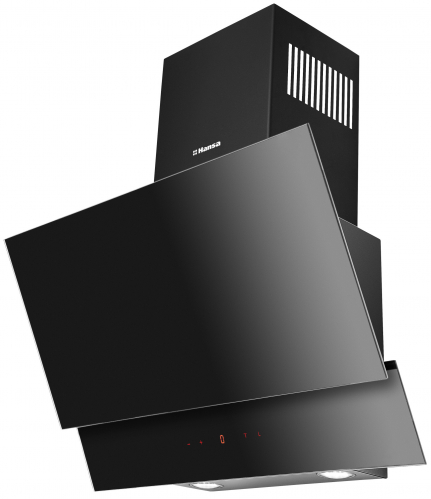

OKC6641SH
1161065
Specification
FEATURES
| Accessories Remote control | Air flaps Yes | Delay Yes |
| FrameOn Yes | Maximum time of delay 90 ' | Panel - language version Pictograms |
| Protection class of electric shock I_Class | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 1 | Number of grease filters 1 | Number of layers in grease filter 3 |
| Number of speed 4 | Remote included Yes | Type of control Sensor |
| Type of display LED | Type of grease filters Aluminium frame | Carbon filter type FWK 250 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 211 m3/h | Air flow at 2 speed - extractor by EN 61591 276 m3/h | ||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 366 m3/h | Air flow at 4 speed - extractor by EN 61591 622 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 622 m3/h | ||||||||||||||||||||||||||||||
| Air Flow at Minimum Speed in Normal Use 211 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 322.7 m3/h | Air Pressure at Best Efficiency Point P BEP 405 Pa | ||||||||||||||||||||||||||||||
| Annual energy consumption 65.7 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 371 lux | Control panel on one side/two sides One side | ||||||||||||||||||||||||||||||
| Country of Origin on Rating Label Made in EU | Dimensions of grease filter 222.5x250x9 | Display color Red | ||||||||||||||||||||||||||||||
| Distance from light cover to wall 10 mm | Distance to electric hob 450 mm | Distance to gas hob 650 mm | ||||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 147.7 W | Fluid Dynamic Efficiency - FDE hood 24.6 | Fluid Dynamic Efficiency Class B | ||||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 62.2 % | Grease Filtering Efficiency Class E | Internal/external motor Internal | Lighting Efficiency - LE hood 42.6 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 622 m3/h | Motor unit rated power 260 W | Motor type/model S-45 004 01 | Net depth 375 mm | Net height max 970 mm | Net height min 780 mm | Net weight 9.72 kg | Net width 600 mm | Noise level at 1 speed - extractor by EN 60704-2-13 49 dB | Noise level at 2 speed - extractor by EN 60704-2-13 53 dB | Noise level at 3 speed - extractor by EN 60704-2-13 58 dB | Noise level at 4 speed - extractor by EN 60704-2-13 67 dB | Nominal Power of the Lighting System - W L 8.7 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.25 W | Power cabel length 170 cm | Power rating 266 W | Power Supply Voltage 230V | Power unit of main lighting 3 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 67 dB | Sound Power Emission at Minimum Speed Available in Normal Use 49 dB | Noise level 67 dB | Time Increase Factor - f 1.1 | Type of main lighting LED |
